OBJ is standard for 3D animation and supported by most 3D graphics applications. Additional data (RGB color or scalar) can be added to each polygon or node. If you have in your application a model represented by mesh, it can be saved easily to PLY format and viewed on a tablet. PLY has capability to store data associated with mesh nodes and elements.

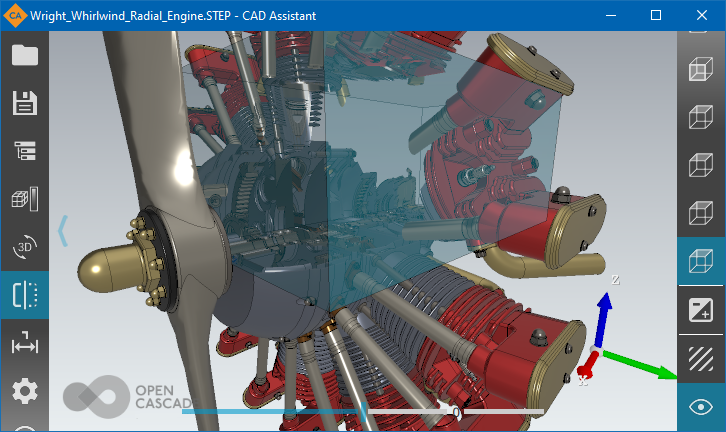

STL is de-facto standard in 3D printing. glTF is an open standard for 3D assets. The selected sub-assembly or part can be queried for its properties.ĬAD model (whole or selected part or sub-assembly) can be exported to any of supported CAD or mesh formats.Īdditional functionality is viewing of mesh models with associated data, implemented using the mesh visualization component of OCCT. The components of the assembly can be hidden or shown as necessary to inspect the model. STEP (AP203 and AP214): shape geometry, assembly structure, colors, names, validation properties, file information.Īssembly structure of the model can be navigated through the tree browser. IGES (5.1 and 5.3): shape geometry, colors, top-level object names, file information. BREP: native OCCT format for shape geometry, topology, and assembly structure. If you wish to use this technology for development of customized solutions for your business, contact us at:īasic functionality is provided by CAD Data Exchange component of Open CASCADE Technology (OCCT). OPEN CASCADE CAD Assistant for Android is an offline viewer and converter for 3D CAD and mesh models.
